Engineers and facility managers constantly seek out technologies that reduce energy consumption without sacrificing climate control performance. When designing commercial air conditioning, cold storage, or industrial chilling systems, the choice of heat transfer equipment plays a massive role in overall energy costs.
Today, Direct Expansion (DX) coils stand out as one of the most efficient and reliable solutions for modern thermal management. By utilizing precision-engineered copper tubing, DX systems allow operators to drastically improve cooling efficiency while lowering installation and maintenance overhead.
What is a Direct Expansion (DX) Coil?
To understand the efficiency of a DX system, you must look at how it handles the cooling medium.
In traditional chilled water systems, a primary chiller cools water, and pumps then circulate that cold water to various secondary coils throughout the building. This two-step process inherently loses energy along the way.
In a Direct Expansion (DX) system, the system eliminates the middleman. The liquid refrigerant expands directly inside the copper tubing of the cooling coil. As the refrigerant absorbs heat from the air blowing across the coil, it evaporates directly into a gas.
3 Key Efficiency Benefits of DX Systems
By expanding the refrigerant directly at the site of heat transfer, DX coils offer several distinct operational advantages:
1. Rapid Heat Transfer
Because the refrigerant absorbs heat straight from the air stream—without transferring it to a secondary fluid first—the system cools the environment much faster. This immediate heat exchange reduces the time the compressor must run, saving substantial amounts of electricity.
2. Lower Equipment and Installation Costs
DX systems require fewer mechanical components. You do not need to install complex networks of chilled water pumps, heavy piping, or secondary cooling towers. This streamlined architecture lowers the initial capital expenditure and frees up valuable mechanical room space.
3. Reduced Maintenance and Leak Risks
Fewer pipes and pumps mean fewer potential failure points. Facility teams spend less time chasing down water leaks or maintaining secondary fluid systems, resulting in lower long-term maintenance costs and higher system uptime.
The Role of Precision Manufacturing in DX Coils
To get the absolute best performance from a DX system, you must manufacture the coils with strict engineering tolerances.
The refrigerant operating inside a DX coil often reaches high pressures. If a manufacturer bends the copper tubing poorly, the walls of the tube can thin out or flatten (ovality). These weak points create turbulent refrigerant flow, reduce efficiency, and eventually lead to pressure leaks.

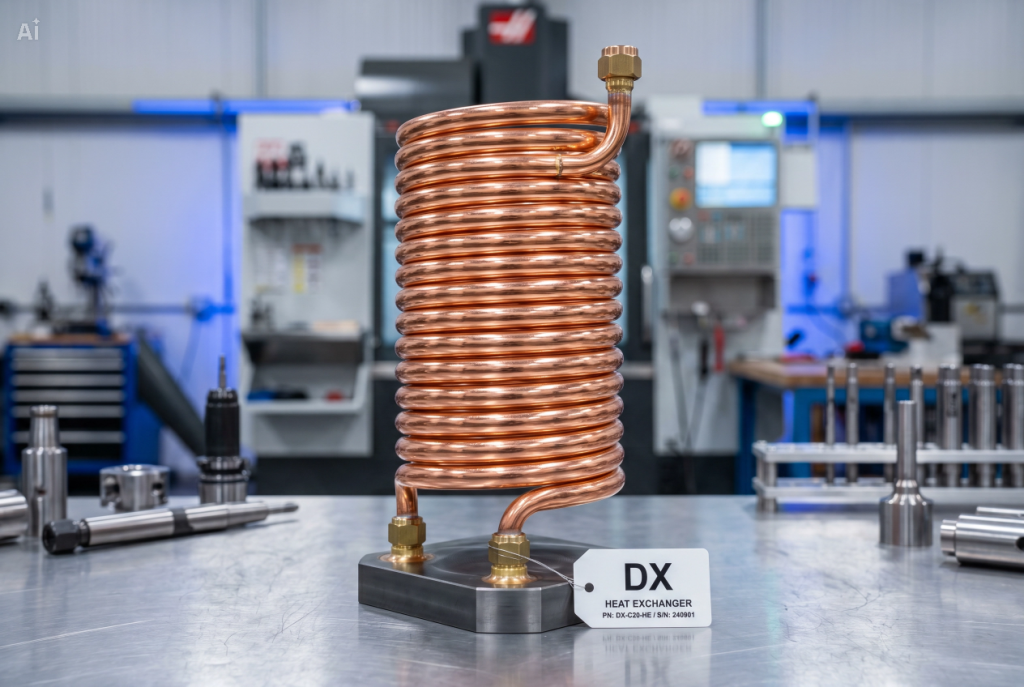

Utilizing advanced CNC tube bending technology solves these manufacturing challenges. CNC machines guide the copper through complex helical or serpentine bends while maintaining perfectly uniform wall thickness and internal diameters. Furthermore, copper offers naturally superior thermal conductivity and prevents biofouling, ensuring the coil exchanges heat at peak capacity for its entire lifespan.
Upgrade Your Thermal Systems with Custom Coils
High-efficiency HVAC and refrigeration units demand high-precision components. Whether you need custom helical configurations or standard evaporator coils, partnering with a specialized tube processing manufacturer guarantees that your parts meet exact pressure and dimensional requirements.
Do you need precision-engineered coils for your next HVAC or refrigeration project? Contact our technical team today to discuss your specifications and learn more about our advanced custom CNC tube bending services.
